GDM-600

آلة توزيع الغراء ذات السرعة العالية والدقة GDM-600, ماكينة نزع العدسات الليد

آلة توزيع الغراء الأوتوماتيكية عالية السرعة والدقة GDM-900, رذاذ عدسة ليد

Widely used for LED lens, LENS, TV backlight strip, fully automatic high-speed surface mount dispensing, edge packaging, surface packaging, UV glue dispensing, epoxy red glue dispensing, bottom filling and other processes.

  • High speed injection valve jet application
  • CCD vision system auto positioning
  • High stability, high speed dispensing effect
  • Precise glue control to ensure consistency of dispensing points
فئة:

وصف

ميزات المنتج:

  • CCD vision system, automatic recognition and positioning, improving production efficiency;
  • Minimal operational error: The large gantry milling solid square steel welding platform adopts imported high-precision grinding grade screw, high-precision grinding grade slide rail, high-precision grinding grade slider, high-precision balance device, and Mitsubishi servo motor imported from Japan to ensure high efficiency and accuracy.
  • Powerful electronic control system: Designed according to national standards, using professional industrial control PC computers, original motors, electronic components, wiring, dust prevention, and anti-static systems.
  • سهل التشغيل, can store 0-1000 sets of parameters.

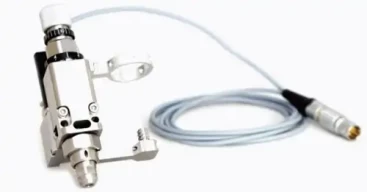

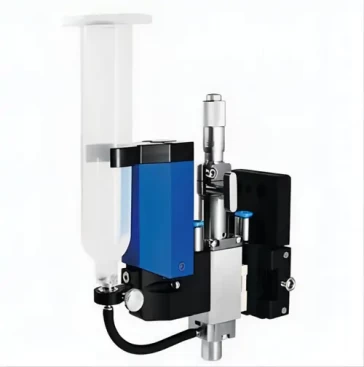

Non-contact high-speed jet dispensing valve:

  • Suitable for spraying various fluids, such as bottom filling adhesive, encapsulation adhesive, surface coating adhesive UV curing adhesive, conductive epoxy adhesive, red adhesive, silver paste, ink, إلخ.
  • The precise control of adhesive amount and high repeatability ensure the product quality consistency of adhesive content.
  • Significantly increased dispensing capacity, with a dispensing speed of up to 300 points/s;
  • تصميم وحدات, easy to disassemble, clean and maintain.

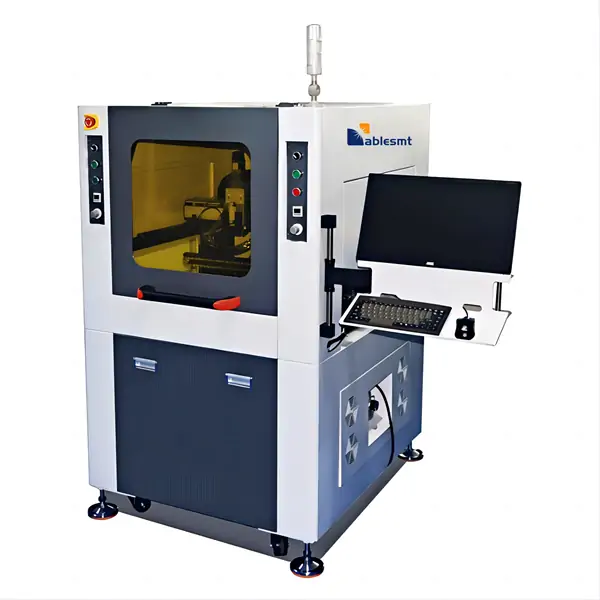

Automatic High Speed Precision Glue Dispenser Machine GDM-600
Technical parameters
نموذج GDM-600
Max Mounting area 600*400مم
Glue viscosity ≤100,000Cps
Dispensing Valve Inject Valve
Minimum injection volume 0.05mg
Dispensing Speed 300 Points /S
Glue Volume 30ml
Camera Brand Da Heng Imaging
Coaxial Lighting PPX-CO30
Dispensing Accuracy ±1% of the Setted Glue volume
Mounting Area 600(X)*400(ي)*60(ز)مم
سرعة التحرك X:500مم/ثانية、Y/Z:300مم/ثانية
Position Accuracy ± 0.02 مم
Dispensing Mode Point,Straight Line,Circle,Arc,Support CAD Graphic import
Air Pressure 0.5-0.8MPa
Programming CCD visual programming
Electronic control system Intelligent motion control card+Industrial computer+PLC+Visual software
البعد 1220mm*1150mm*2000mm
وزن 620كلغ
قوة 220V 50Hz,2كيلوواط
