طابعة شاشة نصف تلقائية- لثنائي الفينيل متعدد الكلور LED الكبير -SPL

ملامح:

• High-speed guide rail with precision rollers from Korea; Stepless variable speed motor.
• The scraper holder can slide forwards and backwards. The scraper can rotate upward 45 degrees and be fixed.
• The plate alignment method adopts stencil movement, combined with the X and Y fine-tuning handles of the printing platform, making it convenient and efficient.
• Programmable PLC from Panasonic or Mitsubishi Japan and HMI touch screen.
• With automatic counting function.
• Featuring four working modes: تلقائي (for machine maintenance), semi-automatic (for normal operation), semi-automatic with intermediate pause, and manual (for debugging).
• The workbench is equipped with a magnetic honeycomb platform; single and double-sided board positioning is convenient and highly flexible.
• The scraper angle, pressure, and stroke can all be adjusted, suitable for both steel and rubber Squeegee.
• The intelligent control of the pressure gauge regulates the left and right pressure of the scraper, protecting stencil and prolonging its lifespan. This ensures uniform printing pressure and consistent tin thickness.
• Clean stencil alarm function, convenient for regular cleaning to ensure printing quality.

Motion system

Ball linear guide rail and adjustable speed stepper motor to drive , ensure the stability and precision of the printing. Repeat accuracy +/- 0.05مم.

Squeegee

Different types of squeegee for most applications, you can select between rubber and metal type squeegees in specified sizes.

Excellent Positioning and Precise adjustment

This unit provides superior printing results with precise micrometer screws (X Y R & Level) adjustment of the stencil. Excellent positioning accuracy and unique floating print head to make the solder paste more even.

Control & Operation system

The PLC & touch screen control system makes sure system work more stable, Snap-off speed can be adjusted by production setting based on different PCB and the Function of cleaning stencil alarm remind operator to clean timely.

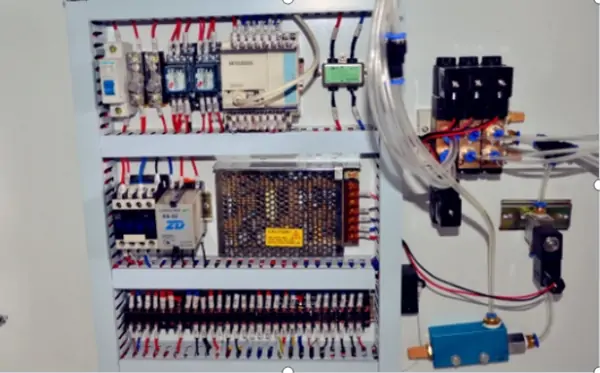

Perfectly Configuration

Use famous brands electrical components and pneumatic component, like Mitsubishi PLC, Omron intermediate relay, FTK motor, SMC air cylinder etc.

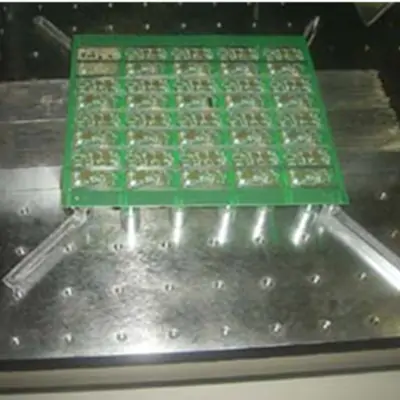

High precision magnetic platform (patented)

High precision aluminum honeycomb platform for optional
