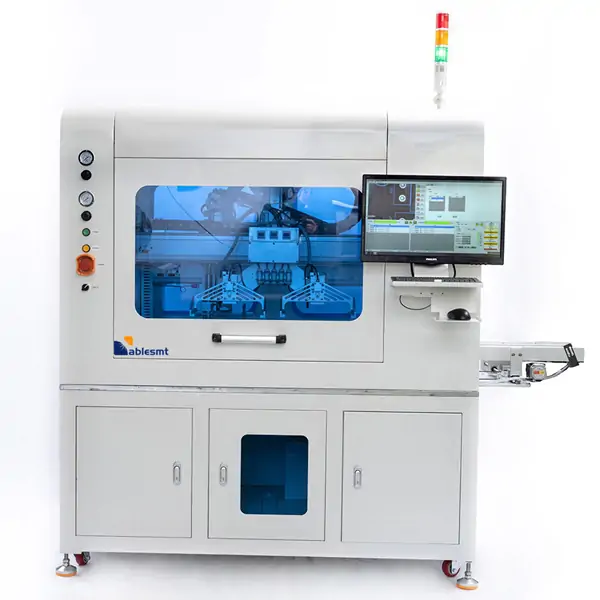

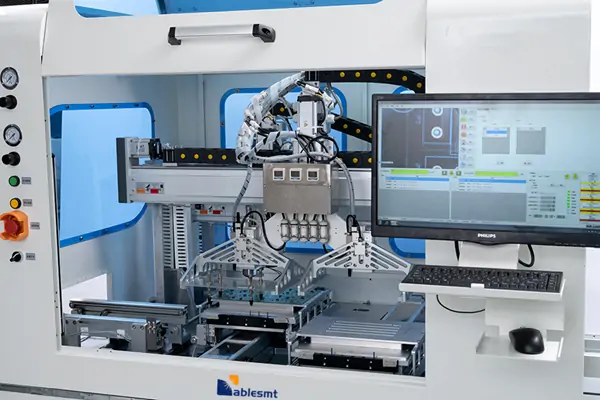

Máquina de corte de fresado en línea completamente automática AMD-10, Depósito de trabajo dual

PCB Laser Cutting Machine LCM-5
Desktop Milling Cutter Board Splitting Machine DCM-3
  • Double platform stress-free cutting.
  • Precise positioning of MARK point.
  • Imported visual color high-definition industrial camera, automatic video.
  • Equipped with automatic tool changer.
  • Imported high-speed electric spindle.
  • Accurate positioning, short programming time
  • Board output after whole Panel finished cutting, save time
  • Cooperate with other automation equipment to realize unmanned intelligent “PCBA circuit board”cut-board integration.
Categorías: ,

Descripción

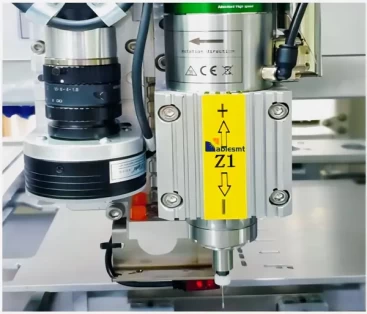

Mark positioning correction system:

lt can make the line change and the fixture change more concise and accurate,and can effectively prevent the board from not being placed in place during online production, or mixing materials and resulting in broken products.

Since your product may have double-sided processing, the standard MARK point may only one side, so the corrective action is indispensable. The Mark points are usually irregular in shape, it is easy to report errors or compensate offset.

Based on our experience, we have greatly improved the recognition pass rate and compensation accuracy by adopting smart camera upgrade algorithms and special light sources.

Cambio automático de herramienta:

During processing, it can be set to detect each step, or each piece of cut PCBA , detects whether the tool is broken, Prevent the repeated cutting caused by the tool breaking in use in time.

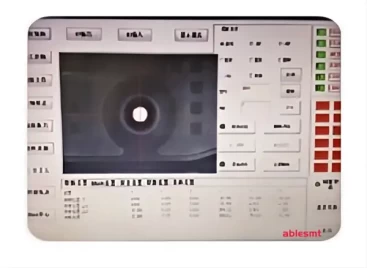

Visual System:

High-pixel color digital camera and large magnification lens can assist program teaching and editing simulation functions. Automatic MARK positioning auxiliary system.

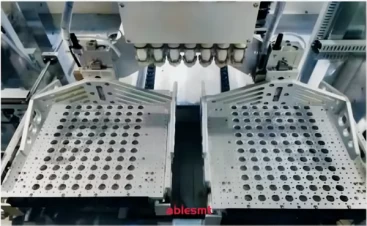

Product Transfer Platform:

The dual-platform modular servo control system has extremely high stability, and the cutting accuracy can reach ±0.01mm, which can meet various cutting needs and ensure production quality.

Online Visual Milling Cutter/Splitting Machine AMD-10
Área de tamaño de PCB 350 * 350MM (single platform), 280 * 300MM ( two platforms), or optional
Grosor de la placa de circuito impreso 0.4~5 MM
Dirección de transmisión izquierda y derecha
Positioning Method Fixture + fiducial mark
Axis Control Method Industrial computer+Servo motor
Precisión de corte ± 0,05 mm
Velocidad de corte 1-100MM/S
Velocidad del husillo 60000-100000 rpm/MIN
Altura de transmisión 900+/-50MM
Precisión repetitiva ± 0.02mm
Automatic tool change detection Sí
Detección de cuchillo roto Sí
Dust Collection lower dust collection, upper for optional
Vision system High pixel color digital camera and high magnification lens, fiducial Mark positioning correction system
Método de salida de la placa Transmisión por correa ESD
Programación de programas GERBER CAD drawing import/editing program through visual system
Presión de aire 0.5-0.70 AMP
Voltaje AC380V 5KW
