Pencetak tampal solder automatik sepenuhnya- Pse
Vision Alignment, Higher Performance
- Solder Paste 2D Inspection
- Wide application range
- Unique sprinkle automatic cleaning system
- Efficient energy-saving wiping paper-saving structure
- Unique image processing system, print 0.3mm ultra fine pitch pad perfectly
- Intelligent printing product mode
- Printing range: 400*340mm/510*340mm
- Use international universal UVW three axis linkage platform
Machine Option : automatic add solder paste function. automatic stencil inspection function .automatic dispensing system .squeegee pressure feedback function .automatic MSE/SPI online function .automatic constant temperature and humidity function. Industrial 4.0 intelligence compatible system
- Penerangan
- Spesifikasi
Penerangan
Stencil Positioning System
Arch bridge type suspending direct-connected scraper programmable printing head.
lt is applicable for stencils of various sizes.
Automatic stencil positioning system saves the line changeover timeand enhances the overall efficiency.
Double sliders ensures the printing head moving accuracy and stability when scraper is running back and forth

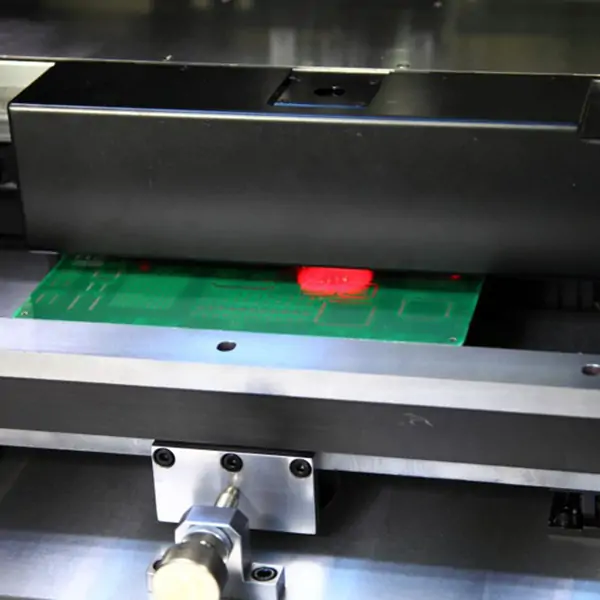

Image and Optical System
Uniform ring light，high brightness coaxial light， and advanced upper /lower vision system.
Full range of light compensation, Automaticand accurate recognized of all type of MARK points.
Applicable for tin plating, copper plating, gold plating, LF-HASL, FPC and other types of PCB with different colors, able to ensure high accuracy.
Cleaning System
Stencil cleaning system is automatic and effective.
Three options, Dry cleaning,Wet cleaning and Vacuum cleaningcan be selected to use,both individually and multiply; And you can also choose to clean manually.
The clean unit is separated from CCD camera, which can minimize the load of motor and impulse, improve the positioning precision and speed, and extend the service life.
Spray system ensures spraying evenly, from top to bottom. Control soft system controls the usage of alcohol and stencil cleaning paper, effectively save more consumables.
Vacuum cleaning is supported with a special fan, powerful and effective.
Specail PlatformCalibration System
The three-axis linkage has ultra-high dynamic characteristics and can quickly adjust PcB boards with different thicknesses.
Operation Interface
Windows XP operation system, easy to learn foruser，with good man-machine interactive function.
Programingis designed with teaching and navigation function, guidance is available on everystep.
Journal/BreakdownRecord/Breakdown Diagnosis
Tansport and Clamping System
Unique belt transmission system avoids being stuck or fall-off of PCB
Programmable motor controls transportspeed and puts PCB in precise position.
Free to choose left or right as the PCB input/output direction.
Flexible side clamp and PCB support vacuum block hold PCB tightly and ensure the full even contact between PCB and stencil.
Machine Option:
| Automatic add solder paste function. | Automatic stencil inspection function . |
| Automatic dispensing system . | Squeegee pressure feedback function . |
| Automatic MSE/SPI online function . | Automatic constant temperature and humidity function. |
| Industrial 4.0 intelligence compatible system |
Standard Lead time：
| Quantity (pieces) | 1 – 1 | > 1 |
| Lead time (days) | 30 | To be negotiated |
Dimensional Drawing
Packing & Delivery：Standard Wooden Case with Vacuum Package
| Pencetak tampal solder automatik sepenuhnya- PSE Specification | |
| Sceen Frames Size | 370 x 370-737 x 737 mm |
| Sceen Frames Thickness | 25-40mm |
| Saiz PCB | 50*50-400*340 mm |
| PCB Thickness | 0.4-6mm |
| PCB Warpage | <1% |
| Ketinggian pengangkutan | 900+/-40mm |
| Arah pengangkutan | left ⇋ ⇌ right |
| Transport Speed | 1500mm/Second |
| Support System | Magnetic Pin/Support Blocks/Automatic up-down table |
| Clamping System | Side clamping, Vacuum nozzle |
| Print Head | two independent motorized |
| Squeegee Speed | 6-200 mm/second |
| Print Pressure | 0-15 Kg, by motor |
| Squeegee Angle | 60°/55°/45° |
| Squeegee Type | Stainless Steel (Standard) /Rubber Squeegee |
| Stencil Snap-off | 0.1-20 mm/second |
| Cleaning System | Dry, Wet, Vacuum, three modes |
| Table Adjustment Range | X/Y +/-10 Mm |
| CCD ( FOV) | 8*6 mm |
| Solder Paste Inspection | 2D inspection, Standard |
| Machine Parameters | |
| Repeat Position Accuracy | ±0.01mm |
| Printing Accuracy | ±0.025mm |
| Cycle Time | <7 Second |
| Changeover Time | <5 min |
| Air Supply | 4.5~6Kg/cm² |
| Bekalan kuasa | AC220V ± 10%,50/60HZ, 3Kw |
| Control Method | PC control |
| Machine Dimensions | 1220*1375*1500mm |
| Berat | 1000Kg |
