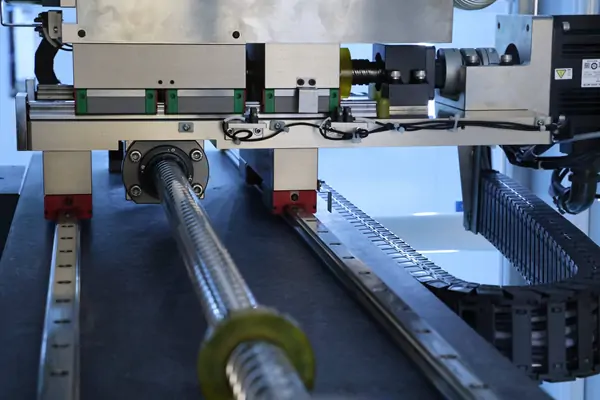

Automatic single side film mulching machine 4
Automatic single side film mulching machine 5
Automatic single side film mulching machine 6
Automatic single side film mulching machine 7
Automatic single side film mulching machine 8

Automatic FPC Single side Film Laminating Machine- FL-500

Máquina de refuerzo de FPC automática- FR-400
Automatic Roll To Roll coverlay punching machine- RTR 4100

This machine used fro EMl and CVL lamination in FPC manufacturing process

Categorías: ,

Descripción

Características

  • Easy to operate and quick to change part
  • Independent research and dewelopment of software and hardware
  • incógnita,Y,θ alignment using linear motor+DD motor alignment, high speed, high precision; using the way of heating both the upper and lower platforms,more efficient
  • Film cutting area adds the detection function. When the film not opened, the second opening actions arecarried out, which greatly improves the success rate of tear film
  • Film cleaning function is added. The dust roller and plasma air bar are used to remove dust, which effectively reducesthe defect rate
  • FPC cleaning function is added. The dust roller and plasma air bar are used to remove dust, which effectively reducesthe defect rate.
  • The extracting function for FPC and CVL, When the MARK point is not recognized, the material will be thrown/ extracted automatically, reduces the manual intervention and improves the running smoothness of the equipment
Artículo Parámetros técnicos
Sistema de operación Win10 operation interface
Control Technology Industrial computer+Motion control board+automatic image correction
Product program storage 1000 species
Production change indication Repeat production change for about 5-10minutes,new product change within 20 minutes
CVL,FPC,Finished production NG remind function The function of film NG or bad material throwing can be realized, and when the numberof throwing times exceeds the set, the alarm will be given
Information Display Single chip cycle, total output, daily output, alarm information;other production information needs to be customize.
Repreat Accuracy 土0.02mm
Laminating cycle 土0.03 mm(excluding FPC and CvL expansion and contraction)
Laminating type 1FPC+ (1-3Pcs) CVL
Laminating way Single side laminate
Heating Mold FPC+CVL simultaneously heated
FPC supply mode Stacked automatic feeding (0-50mm)
CVL supply mode Stacked automatic feeding (0-50mm)
Visual conterpoint system Two 5million pixels CCDs
Recognition Accuracy 0.01mm
Fuente de aire 4~6Kgf/cm2
Fuente de alimentación principal C.A.:220±10%，50/60Hz ,9KW
