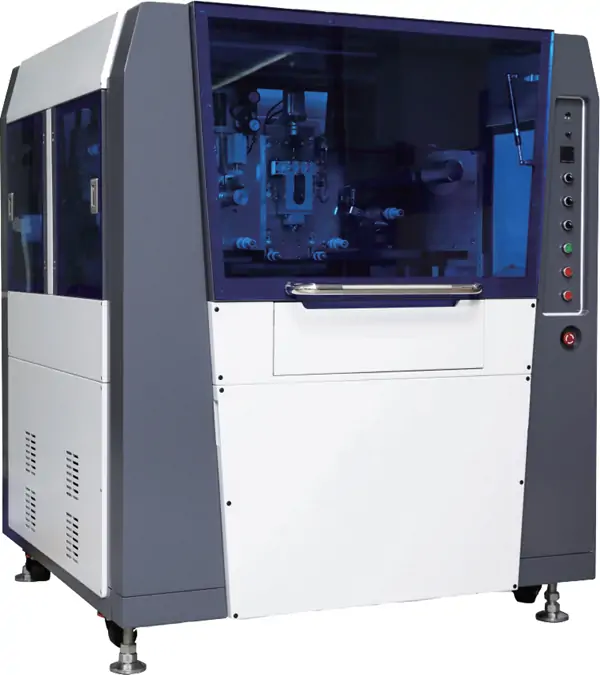

automatic reinforcing machine

Máquina de refuerzo de FPC automática- FR-400

Máquina de alimentación automática de FPC- FF-450
Automatic FPC Single side Film Laminating Machine- FL-500

This equipment is used for reinforcing PI and adhesive paper on FPC

Categorías: ,

Descripción

Funciones

  • Simple operation, change model quickly and high efficiency
  • Independent research and development of software and hardware
  • incógnita,Y,θ alignment using servo motor+DD motor alignment, high speed, high precision;
  • FPC automatic loading and unloading, NG auto extrac, can adding seperate board
  • The punching and pasting is driven by servo +grinding screw rod, which is more effcient and stable; can automatically adding lubricating oil



Artículo FR400 Technical Parameters
Sistema de operación Win 7 operation interface
Control Technology Industrial computer+Motion control card+automatic image correction
Product program storage 1000 species
Precisión 土0.1mm
tiempo de ciclo Fastest 5 PCS per Seconds, depend on the material
Reinforcing material type Pl, adhesive paper, pure adhesive, conductive cloth, electromagnetic film, etc.
Reinforcing material loading type roll
FPC feeding mode Sucker automatically load
Temperature Setting Hasta 100 °C
Punching material Recommand use D2
Life of punching mold lt can be used for more than 5 million times, and can be used againafter finishing grinding the cut surface
Fuente de aire 4~6Kgf/cm2
Fuente de alimentación principal C.A.:220±10%，50/60Hz ,5kilovatios
