AI-4

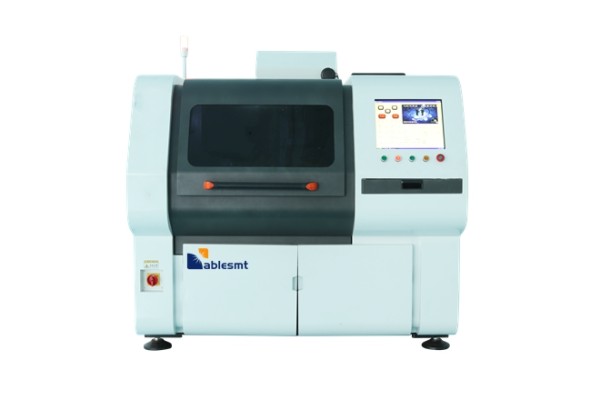

Axial Insert machine

Máquina de inserción de componente axial AI-4

Máquina de inserción de componente radial Ri-3

Horizontal plug-in machines are generally suitable for automatic plug-in work of small components, with a relatively small volume, which can be understood as components lying on the PCBA, with a large contact area, high stability, and almost negligible error rate.

Same feeder system as Universal Machine

Categorías: ,

Descripción

Características：

  • Independent servo control system with multiple sets, achieving high and stable plug-in performance
  • 45° Forming Tool Holder, Extremely Low Tension Range: 45° V-shaped forming cutter significantly improves the cutting resistance of the tool, controls the tensile interference within a very small influence range, and ensures the reliability of the process.



  • Intelligent Feeder, More Intensive & Efficient: ultra-high speed capacity of 24000 paints / hour. And can also expand the stations to meet the process needs in the future.
Yo yo THT Parameter Model AI-4
Componente aplicable Condensadores, transistors, diodes, resistors, inductores, fuses, and other tape packaging materials
Dirección de inserción 0–90°–180°–270°
Lead span hole distance 5-20mm
Velocidad de inserto 20000 Unidad por hora
Tamaño de PCB 50* 50 -320*360milímetros, or optional
Espesor de PCB 0.79-2.36 milímetros
Jump Wire Independent conveying method. Tinned copper wire with a diameter of 0.5mm~0.8 mm
Componnet Insert bending length 1.2-2.2 milímetros, ajustable
Componnet Insert bending angle 5-35°, ajustable
Feeder capacity 10,12,20,30,station, o 40, Optional
Progamming Method USB,Entrada de datos de Excel
Corrección de compensación de la junta La marca fiducial de PCB es reconocida por la visión industrial de CCD
Sistema de operación Controlado por computadora industrial,Sistema de operación de Windows
Fuente de aire 0.4~0.6Mpa
Fuerza AC220V，50/60Hz, 2.0 Kva, 1.6KW
Dimensión 1700×1500×1800mm
Feeder station dimension 1200×1000×1410mm (20 stations standard)
Peso Aprox.. 1200 Kg
