THT through hole process Vertical Plug-in Machines, for Radial tape packaging materials such as capacitors, transistors, transistors, transistors, LED lights, button switches, resistors, conectores, coils, potentials, fuse holders, fuses, etc

  1. Highest Throughput
  2. Strong Machine Flexibility
  3. Lowers Cost of Ownership

Applicable Industries: LED industry, Electrical industries , Vehicle industries , Energy saving lighting, Fuente de alimentación, and so on.

Categorías: ,

Descripción

Características：

  • Independent servo control system with multiple sets, achieving high and stable plug-in performance
  • High productivity & Faster speed: With an actual insertion speed (UPH) of 0.26 segundos por pieza (optimal state achievable), the balance of process efficiency before and after the production line can be easily raised to a new level. Its optimal performance of 300DPPM (reachable) insertion defect rate has increased equipment utilization and system productivity to unprecedented heights

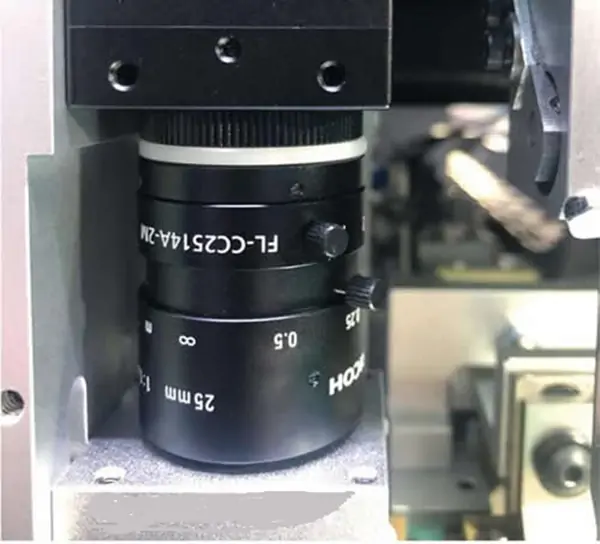

  • High precision fixed vision system & Extraordinary precision deviation correction ability: whole series of insertion systems are equipped with high- precision fixed camera vision system, which can correct PCB manufacturing deviation in real time and effectively improve the yield of insertion process. The well- designed fixed position of the camera ensures the field of view to the greatest extent and effectively covers the operation range of PCB insertion.
  • Bajos costos de mantenimiento.
Yo yo THT Parameter Model RI-3
Componente aplicable Radial tape packaging materials such as capacitors, transistors, transistors, transistors, LED lights, button switches, resistors, conectores, coils, potentials, fuse holders, fuses, etc
Tamaño de componente h<23milímetros, Diameter<13milímetros
Dirección de inserción -90˜90°
Lead span 2.5/3.0/3.5/5.0/7.5/10.0/15.0milímetros
Velocidad de inserto 20000 Unidad por hora
Tamaño de PCB 400* 380 milímetros, or Opetional, (t:0.79-2.36milímetros)
Espesor de PCB 0.79-2.36 milímetros
Componnet Insert bending length 1.2-2.2 milímetros, ajustable
Componnet Insert bending angle 5-35°, ajustable
Feeder capacity 10,12,20,30,station, o 40 Optional
Progamming Method USB,Entrada de datos de Excel
Component space 1mm space between components, >3mm between mounting components and hole
Corrección de compensación de la junta La marca fiducial de PCB es reconocida por la visión industrial de CCD
Sistema de operación Controlado por computadora industrial,Sistema de operación de Windows
Fuente de aire 0.6~ 0.8MPA
Fuerza AC220V，50/60Hz, 2.0 Kva, 1.6KW
Dimensión 1700×1500×1800mm
Feeder station dimension 1200×1000×1410mm (10 stations no indepent station)
Peso Approx.2100 Kg
