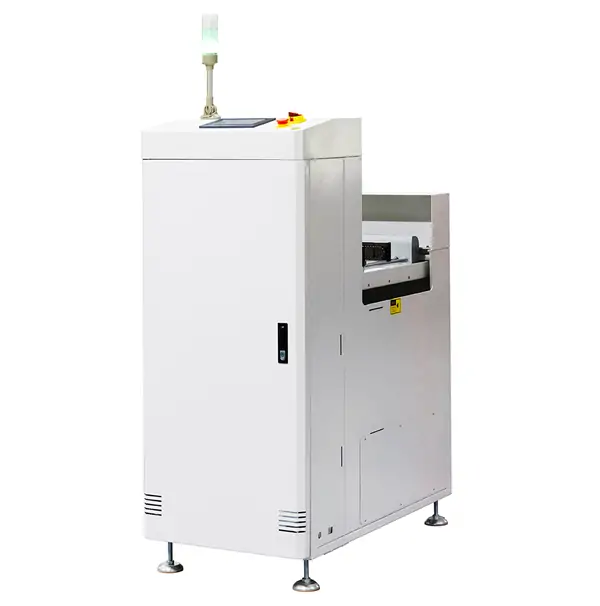

Ascenseur automatique

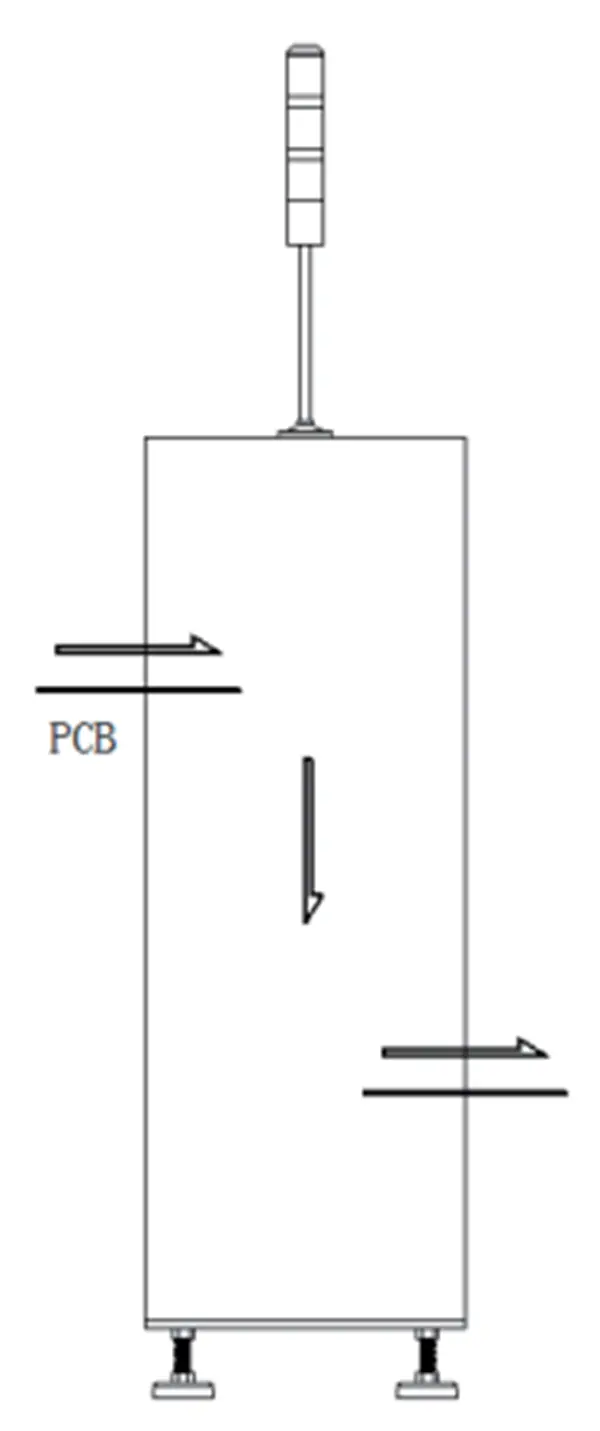

This machine is used to redirect PCBs flow into different heights of production line
- Description
- spécification
Description
Caractéristiques
- LED touch screen control
- Fully enclosed design ensure the safty
- Maintenance window can be opened for easy access

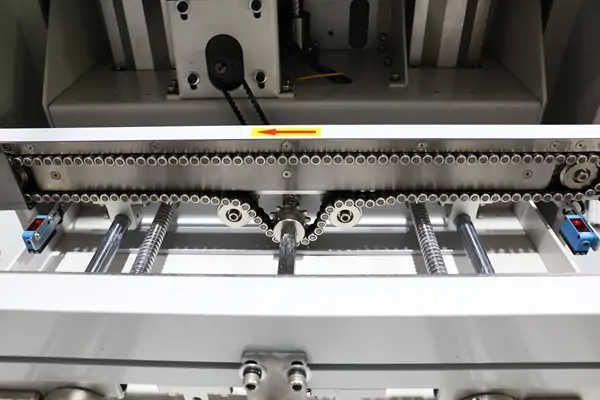

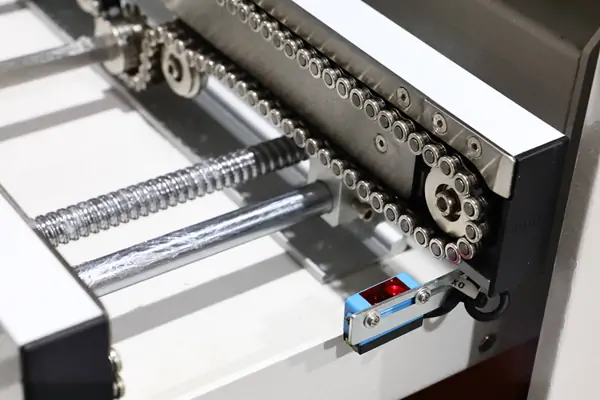

- Parallel and smooth width adjustment (lead screw)
- Fast,Smooth and Accurate Lifting and lowering (Brake motor)
- Minimize clearance between conveyor
- Interface SMEMA compatible
- Machine height can be designed according to customer requirement
| Modèle | Dimension (MM) | Taille du PCB (MM) | Poids (Kg) |
| AE-350 | 500L*920W | 50*50-460*350 | 140 |
| AE-460 | 600L*1050W | 50*50-530*460 | 200 |
| Article | Paramètres techniques |
| Temps d'un cycle | Depend on the Lifting and lowering distance |
| Type de ceinture | Round or Oblate belt |
| Direction des transports | De gauche à droite ou de droite à gauche |
| Alimentation principale | CA:110 ou 220 V , 250W |
