FLIP-6S

Imprimante à jet d'encre de caractères entièrement automatique FLIP-6S

Imprimante à jet d'encre PCB Legend LIP-6 double plate-forme
Machine d'essai de contrainte STM-100

This machine is used in processing of character line printing on PCB, which replaced of the traditional silk screen printing, to provide a high-precision,high-quality and efficient characters production solutions for PCB manufacturers.

Catégories: ,

Description

Caractéristiques

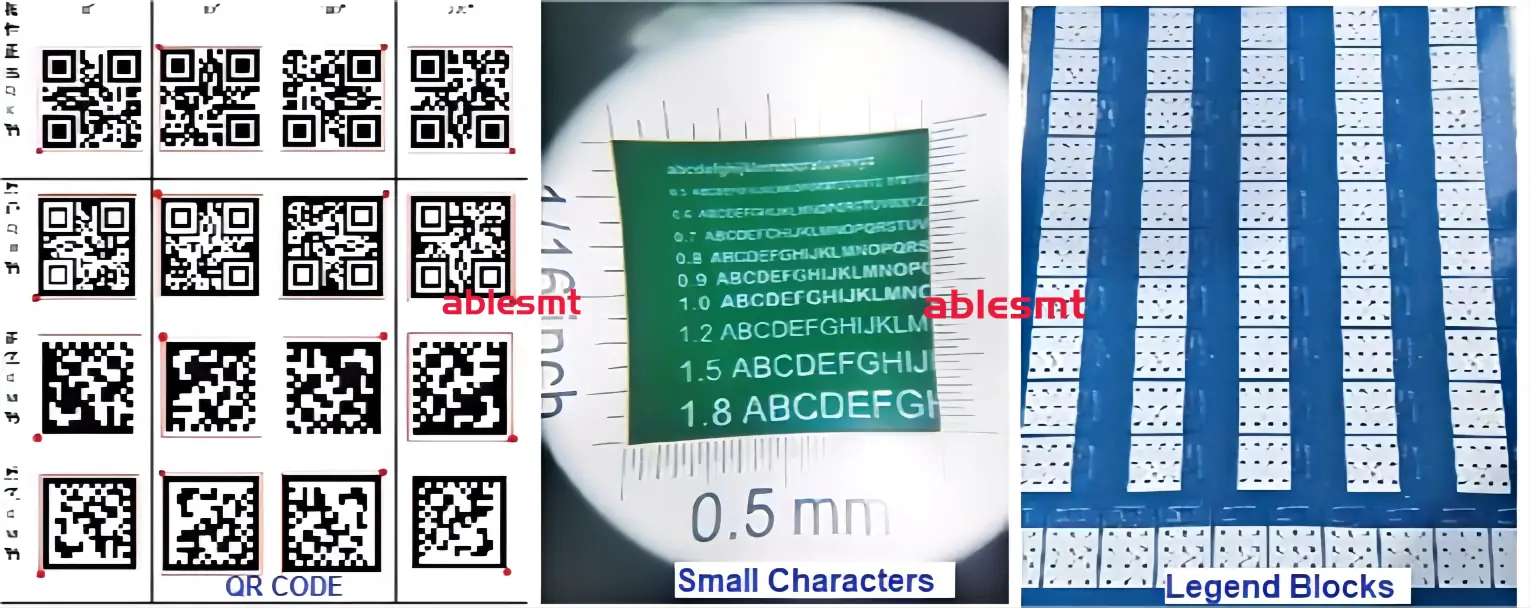

  • The self developed legend block and small character automatic recognition technology can effectively solve the problem of the bock stripes and small characters blurring;
  • The original hole filing technology effectively solves the problems of reduced hole filling capacity and poor hole filing effect,
  • The software is simple, and the material number data can be switched within 100 secondes;
  • The high-quality legend block can be well finished in the two pass printing mode, the production efficiency can be increased by 25%;
  • Automatically print test strips by setting the number of sides of board, monitor the status of the nozzles, and facilitate self-inspection to ensure printing quality.
  • The variable QR code function software is designed to be simple and powerful. Convenient for operators to add; Automatically skip codes according to rules; The minimum size of the code is 3 * 3MM, which can be recognized normally; Design of anti duplication code function; Both single and double-sided codes can be printed;
  • Self-developed nozzle control card and control software, can effectively ensure the stable operation of the printing system;
  • Data processing and transmission are performed on the first board to improve production efficiency and ensure the stability of printing data;
  • The top of the equipment has an air filter function and an internal positive pressure system, which can effectively reduce the occurrence of nozzle blockage;
  • Self-developed nozzle control card with nozzle hole vibration technology can effectively prevent nozzle dogging;
  • The unique hole filling technology, after repairing the clogged position of the nozzle, can meet the requirements of laser QR code on the legend blocks;
  • Equipped with automatic loading and unloading and automatic flipping functions.

Utilisation d'imprimantes de caractères

Machine Model Fully Automatic Assembly Line Character ink-jet Printer FLIP-6S
Printing head Konica
En-tête d'impression 9 têtes, Facultatif 16 ou 18 têtes
Maximum printing area 760x660mm
Productivity 100,000m²/month
Loading and unloading method Automatic loading and unloading and auto turnover
Minimum Line Width 75μm
Minimum character size 0.5×0.4mm
Variable Droplet Technology Yes
Variable Data Function Support QR code,barcode,date and others, partial or all changes
Work Mode The nozzle frame moves slighily on the beam, and the left and right double tables move back and front to print
Board Fix Method Clamping on four sides, board thickness 0.5-6mm
Production Accuracy ±50μm
CCD alignment Lignment method: Double CCD independent axis alignment.
Software function: Real-time image acquisition, alignment and graphic automatic calibration of the network port camera
Image Data Processing Capability 1. Gerber data (RS-274X format) parsing function;
2. Image transformation processing, such as rotation, scaling, and translation;
3.Small characters and white blocks are processed separately, small characters are clear, and white blocks are uniform.
System advantage 1.Broken hole compensation
2. Area selection production
3.Uniform white blocks and controllable thickness
4.Stable printing
Equipment size 14800x2200x2000mm
Poids 10000kg
