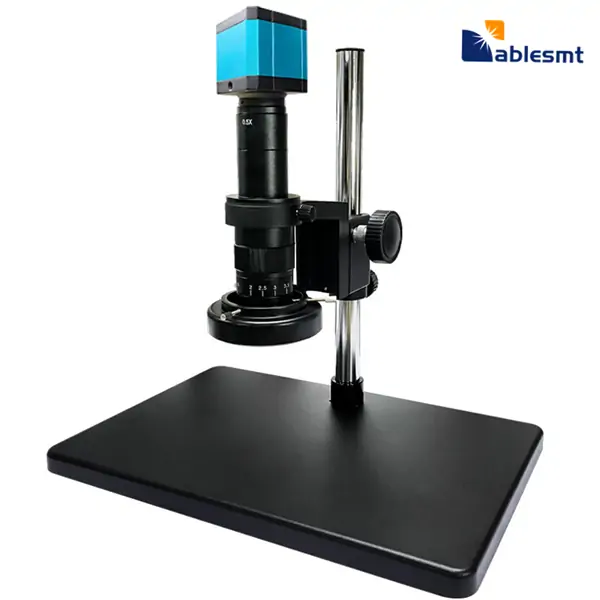

Microscope de mesure industrielle ultra haute définition- MM10
Photography + Video recording + Measurement + TF card storage
HDI+USB OUPUT
Sony chips，Full HD interface
More types and functions for option
- Description
- spécification
- Vidéo
Description

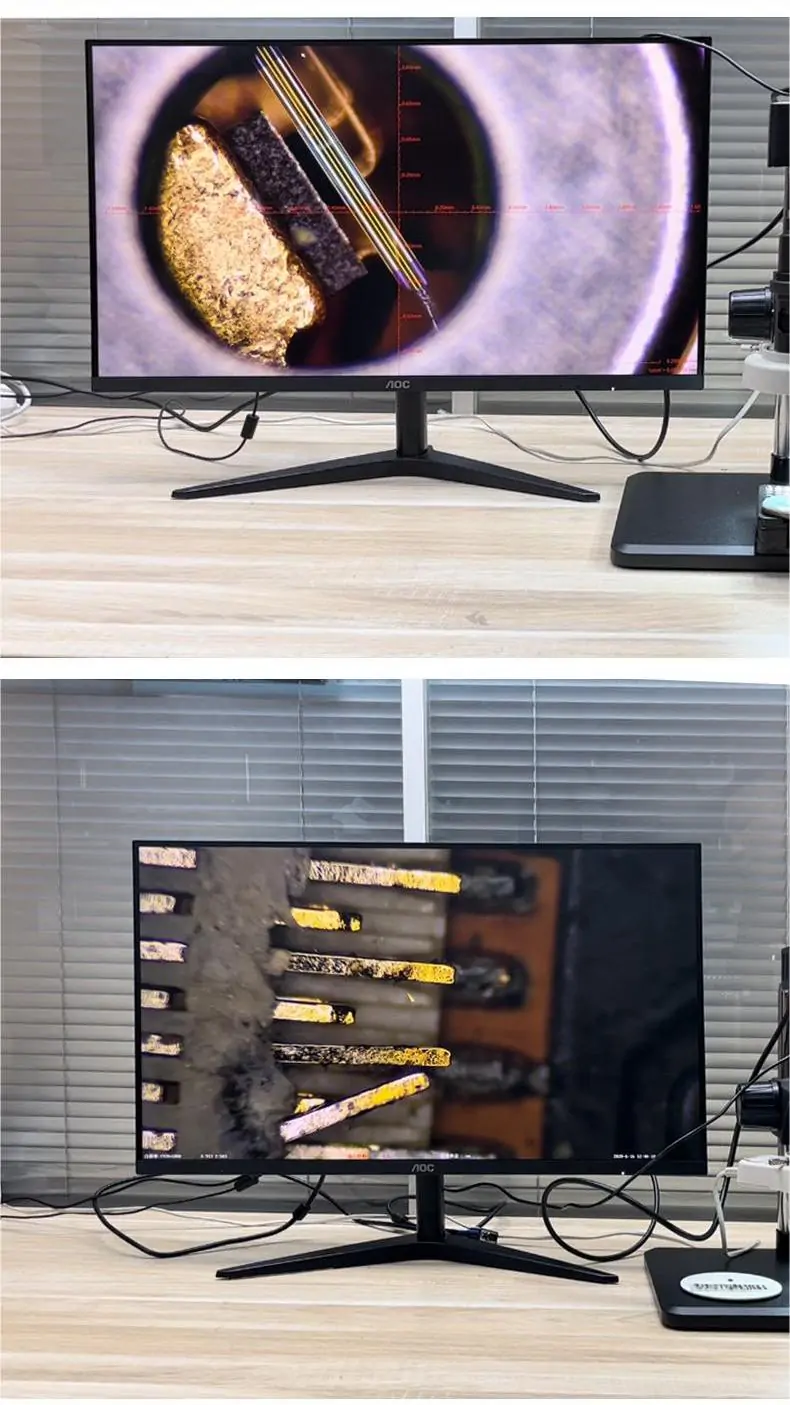

Renderings
| Modèle | MM-10 Parameters |
| Measuring Precise | 0.01MM |

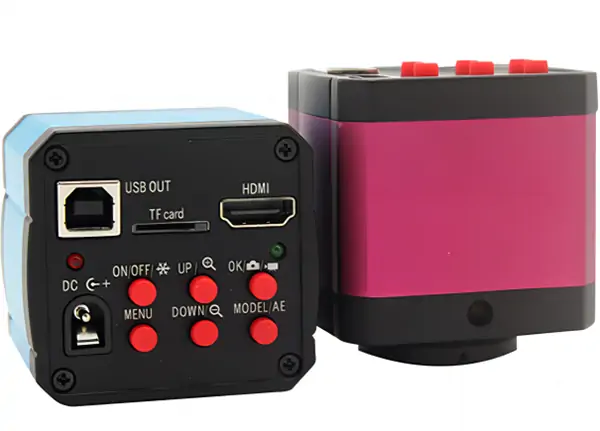

| Output | HDMI + USB |
| Résolution | 1920X1080@60FPS |
| Image quality adjustment | Brightness; Contrast; Saturation; Clarity; Exposure; White balance |
| Special support | Crosshairs; Mirror flipping; Black and white; Language selection; freeze |
| Supporting accessories | TF Memory Card – Wireless Remote Control |
| Camera size | 57mm*52mm* 57 m m |
| Objective Lens | 0.7X-4.5X Continuous zoom |
| Camera eyepiece | 0.5X Standard (0.35X or 1X for option) |
| Field of view range | 2.6mm-22mm Standard (0.6-34 mm option) |
| Magnification factor | 26X-180X （22”display screen）， Max 600X option |
| Focus Mode | Manual knob up and down focusing，1mm-60mm |
| Lighting | High brightness LED machine vision dedicated environmentally friendly power supply, with adjustable brightness |
| Base | Anti static baking paint aluminum， 375*265MM, Thickness 2 MM |
