AOI online standard/grandi – SLA8
Based on the optical principle of common defects encountered in welding production testing equipment.
It can be placed at several quality controlling points in SMT Line to check 2D paste printing quality, inspect component defects before reflow soldering, inspect PCBA quality after reflow soldering and DIP wave soldering.
- Descrizione
- Specifica
Descrizione

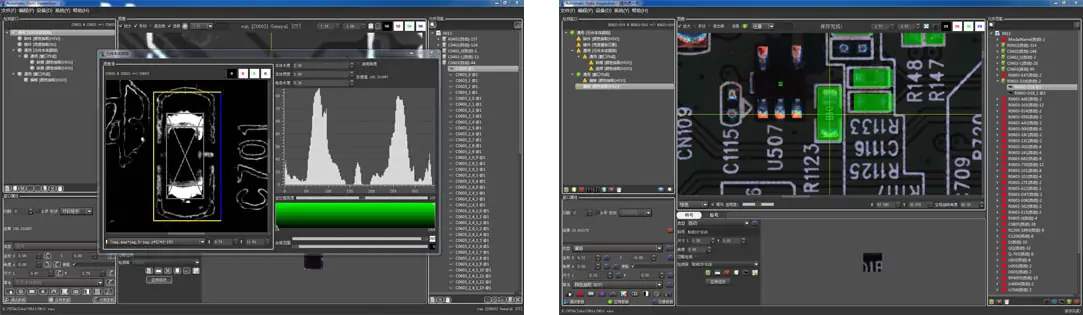

Various vector image algorithms to get the best inspection capability
The vector image algorithms include logic operation, distance of luminance boundary, chip tracing, OCR/OCV, luminance/color template matching, color distance, color extraction (RGB & HSV), value-range of luminance, offset of luminance, the minimum variation span of luminance, etc… More than 30 kinds of the most advanced algorithms.

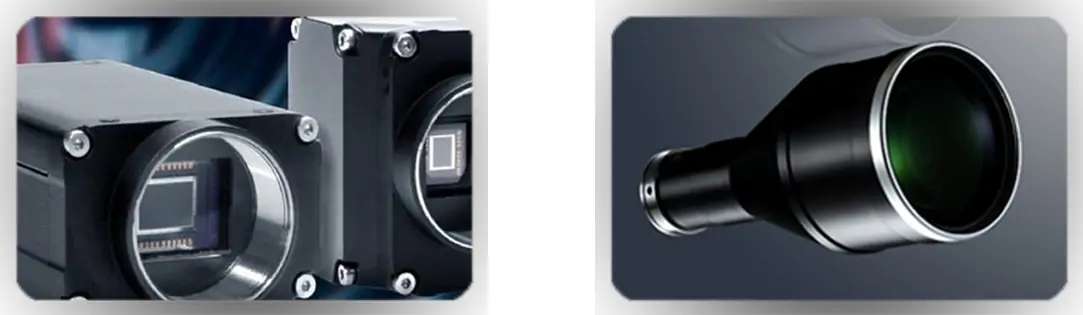

Germany imported 5.0 Mp industry camera
With a high color reproduction, collocation a high-resolution telecentric Lens, high NG identification, provide high-definition image output for the AOI.

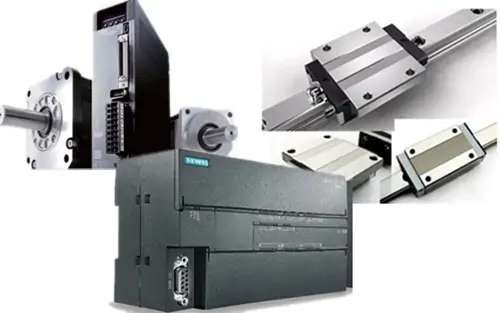

Import Control System
All major components are used internationally renowned brands. In the premise of ensuring the stability and accuracy of the movement equipment, with high service life and low failure rate.

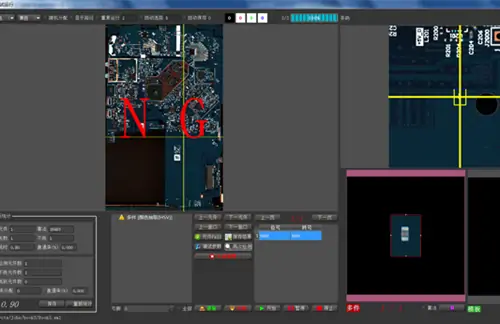

The entire PCB match capability can detect extra parts at any location
The entire PCB match function High frame rate industrial cameras with telecentric lens, high-speed dynamic image acquisition can acquire hundreds of images per second, combined with the software’s entire board matching algorithm, can be used detect extra parts, foreign matter, scratches and other information on the PCB.

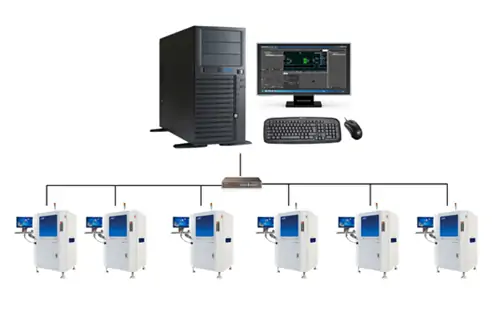

Multi machines one operator, intelligent communication
Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator.
| CATEGORY | ITEM | SLA-8 | SLA-8L |
| Recognition System | Inspection | The vector image algorithms include logic operation,distance of luminance boundary, chip tracing, OCR/OCV, luminance/color template matching. color distance,color extraction (RGB 8 HSV). value-range of luminance, offset of luminance,the minimum variation span of luminance,and so on…More than 30 kinds of the most advanced algorithms | |
| Camera | Distal and high speed color camera,Superiore:5Mp. Bot:5Mp. | ||
| Lente | High-resolution industrial telecentric Lens | ||
| Risoluzione | Superiore:20um(15um for option ) | ||
| Bot 20um(15um for option ) | |||
| FOV | TOP: 48.96×40.96mm BOT: 48.96*40.96mm(20um) | TOP: 30.68×30.68mm BOT: 30.68×30.68mm(15um) | |
| Lamp-house | Ring tower structure,high intensity RIG/B/W flash lighting | ||
| Per-image Time | 220~450ms | ||
| Inspection Items | Missing,misaligned,skewed,tombstone,billboard,overturned.Polarity,wrong,damaged,insufficient pasting, open, stain | ||
| Inspection component capacity | 01005&0.3mm pitch | ||
| Mechanism System | PCB Conveyor | Left to right (Optional,right to left). PCB fixing: bottom-up. Automatic PCB loading and unloading. Adiustable clearance; Conforming SMEMA standard. Orbit clearance: 900±20 mm | |
| Dimensioni del circuito stampato | 50×50mm-400×330mm Can Customerized Size | 50×50mm-510×460mm Can Customerized Size | |
| PCB Thicknes | 0.5-5.0mm | ||
| PCB Weight | Antl-static belt ≤3kg; Supporto:Custom Chain oonveyor ≤10kg | ||
| PCB Warp Tolerance | ±2mm | ||
| Component Clearance | Top≤50mm, Bottom≤50mm | ||
| Autista | AC servo system, Camera moves in the directions of X/Y. | ||
| Orientation | <10um | ||
| Moving Speed | Standard:500mm/s, Massimo:800mm/s | ||
| Soft system | Operation System | Microsoft Windows 7 X64 | |
| Characteristics | Based on the vector calculation,the integrated use of color extraction (Color Extraction), extraction (Luminance Extraction) brightness and color space distance algorithm (Color Distance),the position and shape of mount components and solder joint positioning and accurate analysis, accurate and eliminate all kinds of bad points | ||
| Operation | Graphic programming.Chinese,English | ||
| MES Support | Standard port available | ||
| Network | NG end adaptable,check and correct PCBA defects at repair station | ||
| Controller System | Computer | CPU:Intel Quad-core I7, MEMORY:32G, HARDDISK:2TB | |
| Display | 22 inch TFT | ||
| Communication | Adapt to TCP/IP and Microsoft network system | ||
| Central Control | Support central information control,can remote control multiple same type AOl machines | ||
| Altri | Dimensioni(LWH) | 1060x1250x1560mm | 1160x1400x1680mm |
| Peso | ~1250kg | ~1360kg | |
| Alimentazione elettrica | AC220V.10%,single phase 50/60HZ.power consumption 1800W | ||
| Fornitura d'aria | 0.5MPA. 70cm³/min | ||
| Working Environment | Temperature10-40℃, humidity 30-80%RH | ||
