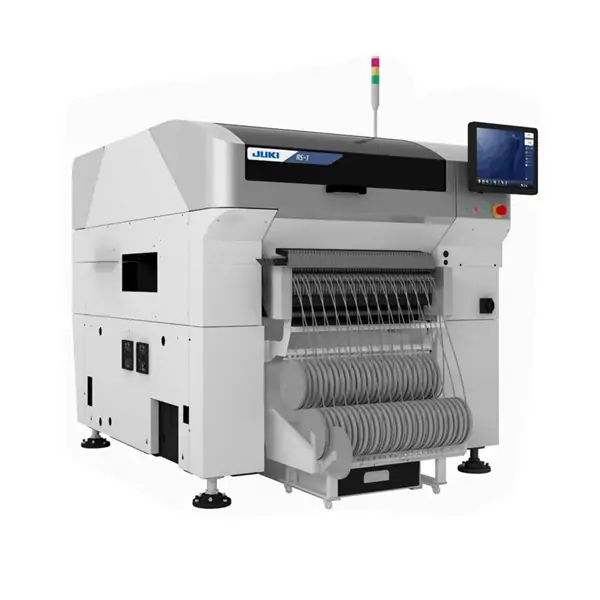

JUKI Fast Smart Modular Mounter RS-1
The ultimate all-in-one mounter
High speed x versatility
- 配置速度：42,000CPH（最適）)
- Maximum board size ：1,200×370 ㎜
- コンポーネントのサイズ ： 0201 ~ □74 ㎜ /50×150 ㎜
- 説明
- 仕様
説明
This is the ultimate all-in-one mounter.
Smart Mounter 1 For High Speed Chip Placement
Maximum speed of up to 42,000 CPH. This is made possible by a revolutionary head design that reduces the travel time and distance for every placement.
The new RF feeders are 17% smaller and 50% lighter, but still maintain the same high degree
of positional accuracy. The thinner width allows up to 112 feeder inputs
Smart Mounter 2 For High Flexibility
Wide component range： RS-1 supports components from 0201*(metric) up to 74mm square or 50×150 rectangular parts. Component height up to 25mm.
Smart Mounter 3 Line Balancer
Changing the RS-1 functionality does not require head replacement.
The revolutionary design adapts to the production requirements automatically. It can be used in-line with high speed chip placement machines to improve overall line productivity or to make the line more flexible for complex PCBs with a high number of large components.
New head design automatically adjusts the centering height based on components placed.
The RS-1 uses a revolutionary new head 8 nozzle design that automatically adjusts the height based on the height of the components to be placed. This technology reduce the Z travel distance to the minimum required and increases throughput. It can adjust to 1mm, 6mm, 12mm, 20mm, or 25mm heights.
JUKI’s laser centering technology is fast, accurate and reliable for a wide range of parts.
Wide range of supported components including PLCC, SOP, QFP, BGA and many more. Size from 0201 *(metric) to 50mm square.
オプション
| Recognitions system | 高解像度カメラ( 10 / 27/54 mm view camera) |
| Oparations system | Rear-side operation unit |
| Conveyor | Conveyor extention*5/support pin / support sponge |
| Electrical protection | CE compatible specification /Ground-fault interrupter |
| Software*4 | JaNets / IFS-NX / Flexline CAD |
| Component handling and feeders | Feeder Trolley（RF feeder only / RF-EF dual servo *6）/Electric tape feeder (RF/EF*7）/EF feeder adapter*6 / Electric stick feeder*7（Type-N/Type-W）/ Electric stick feeder TR8S/Tray Holder /IC collection belt / |
| Tape reel mounting base( for RF/ for EF）/Splicing jig /Electric Trolley Power Station PW02*8 | |
| その他 | Nozzle /Splicing tape / Bigfoot |
| アイテム | Fast Smart Modular Mounter RS-1 | ||||
| コンベア仕様 | 標準 | 150mmコンベヤ延長, 上流と下流 | 250mmコンベヤ延長, 上流と下流 | ||
| 基板サイズ | 分 | 50×50mm | |||
| マックス | 1 バッファ | 650*370mm(シングルクランプ) | |||
| 950*370mm(ダブルクランプ) | 1100*370mm(ダブルクランプ) | 1200*370mm(ダブルクランプ) | |||
| 3 バッファ | 360 *370mm | 500 *370mm | 600*370mm | ||
| コンポーネントの高さ | 25mm | ||||
| コンポーネントのサイズ | 0201-74mm/50×150mm | ||||
| 配置速度 | チップ(最適) | 42,000 CPH | |||
| IPC9850 | 29,000 CPH | ||||
| 配置精度 | ±35um（Cpk≧1） | ||||
| フィーダー入力 | 最大112 | ||||
| 電源 | AC220V-415V,3-段階 | ||||
| 皮相電力 | 2.2 kVA | ||||
| 使用空気圧 | 0.5±0.05MPa | ||||
| 空気消費量 (標準) | 最大50L/分 | ||||
| 機械の寸法 (幅×奥行き×高さ) ※6 | 1500×1,810×1,440mm | 1800×1,810×1,440mm | 2000×1,810×1,440mm | ||
| 質量 (約) | 1,700kg | ||||
