Magazine Buffer

OK and NG Parts Buffer Conveyer
Advanced Inspection Conveyor

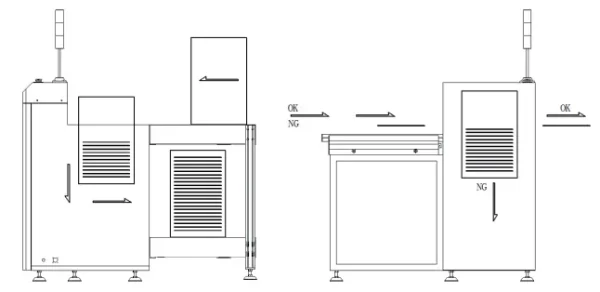

This machine is used for receiving NG board or buffer board after AOI or SPI

Categories: ,

Description

Features

  • Friendly’soft touch’ LED Membrane Switch ( Optional touch screen control)
  • Top & bottom clamps to ensure magazine postion accurate
  • Good design guarantee No PCB will breakage during handling
  • Suitable for buffer NG board after AOI
  • Six operation modes :FIFO,FILO, load, unload, NG board buffer and pass-through
  • Fast,Smooth and Accurate positions
  • Compatible SMEMA interface



Model Dimension (MM) PCB Size (MM) Magazine Size (MM) Weight (KG)
MB-250 1150*1150*1205 50*80-330*250 355*320*563 160
MB-330 1350*1350*1205 50*80-445*330 460*400*563 220
MB-390 1550*1550*1205 50*80-530*390 535*460*563 280
MB-460 1550*1780*1205 50*80-530*460 535*530*563 300
Item Technical Parameters
Magazine Transfer Quantity Upper 1, lower 1;
Step distance 10/20/30/40mm or specify
Transport Height 900士20mm (Or customized)
Transport Direction From left to right or right to left
Main power supply AC:110 or 220 V , 250W
Air Source 4~6Kgf/cm2
